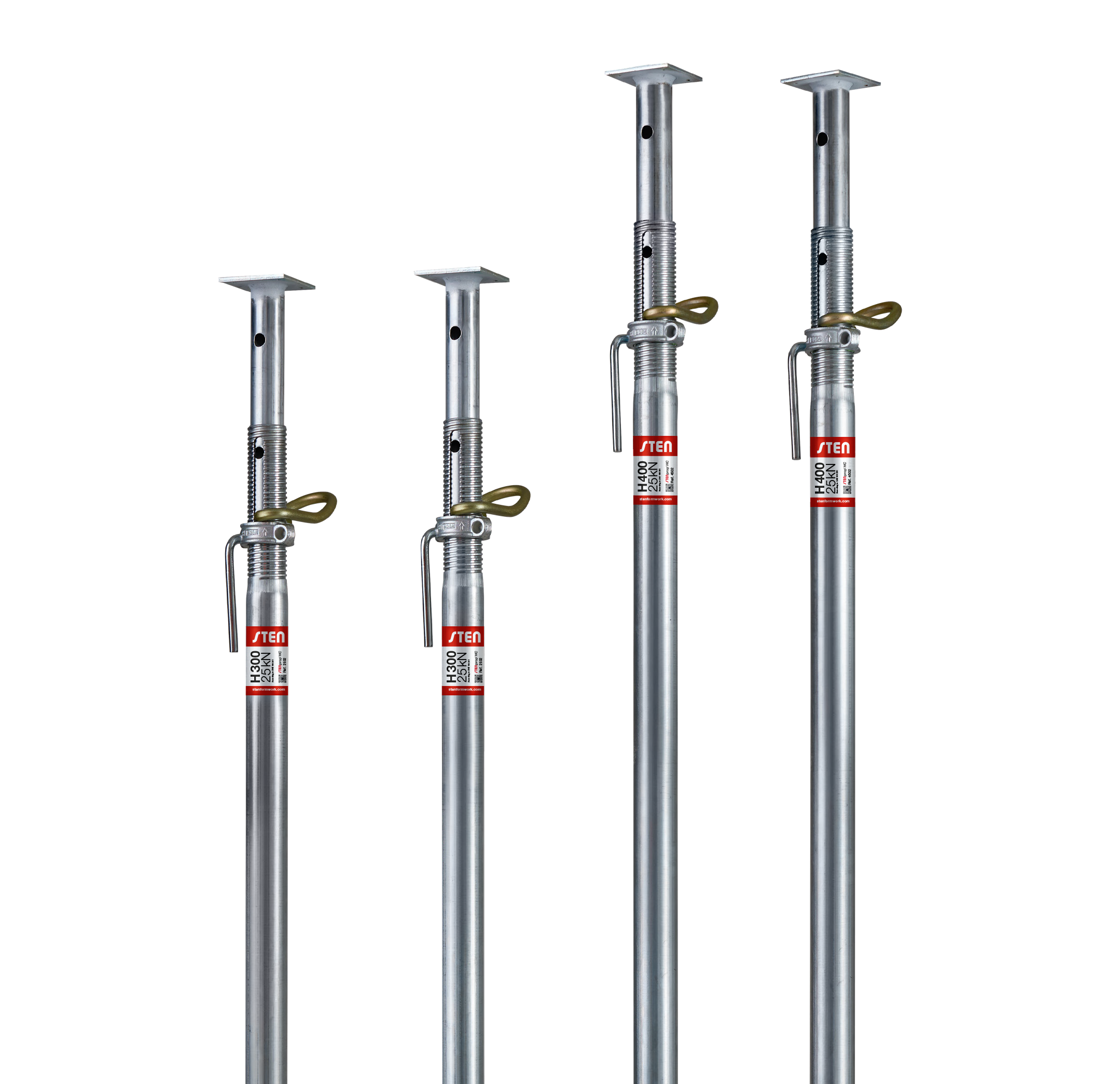

Safe and durable props with a high load capacity.

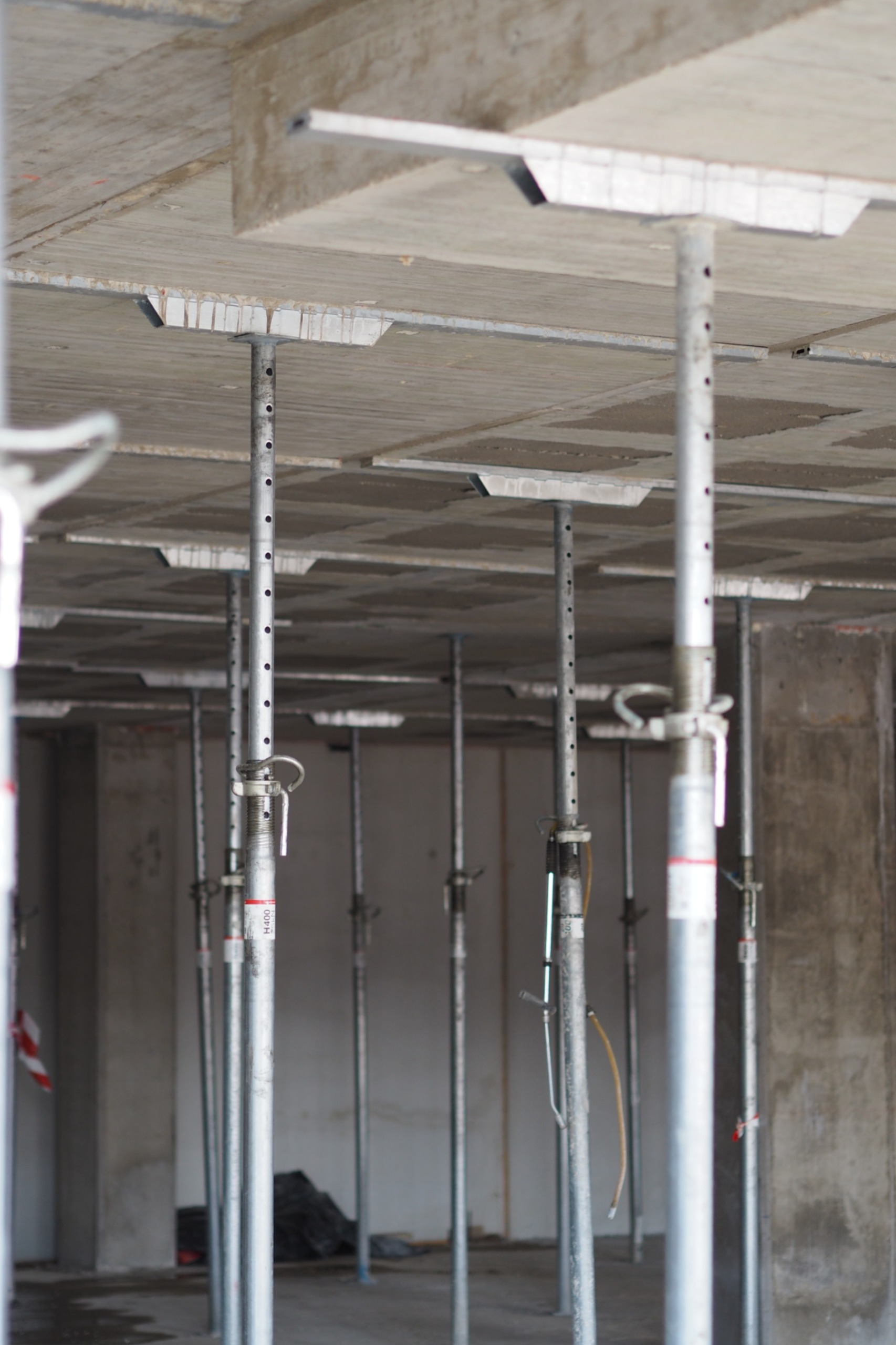

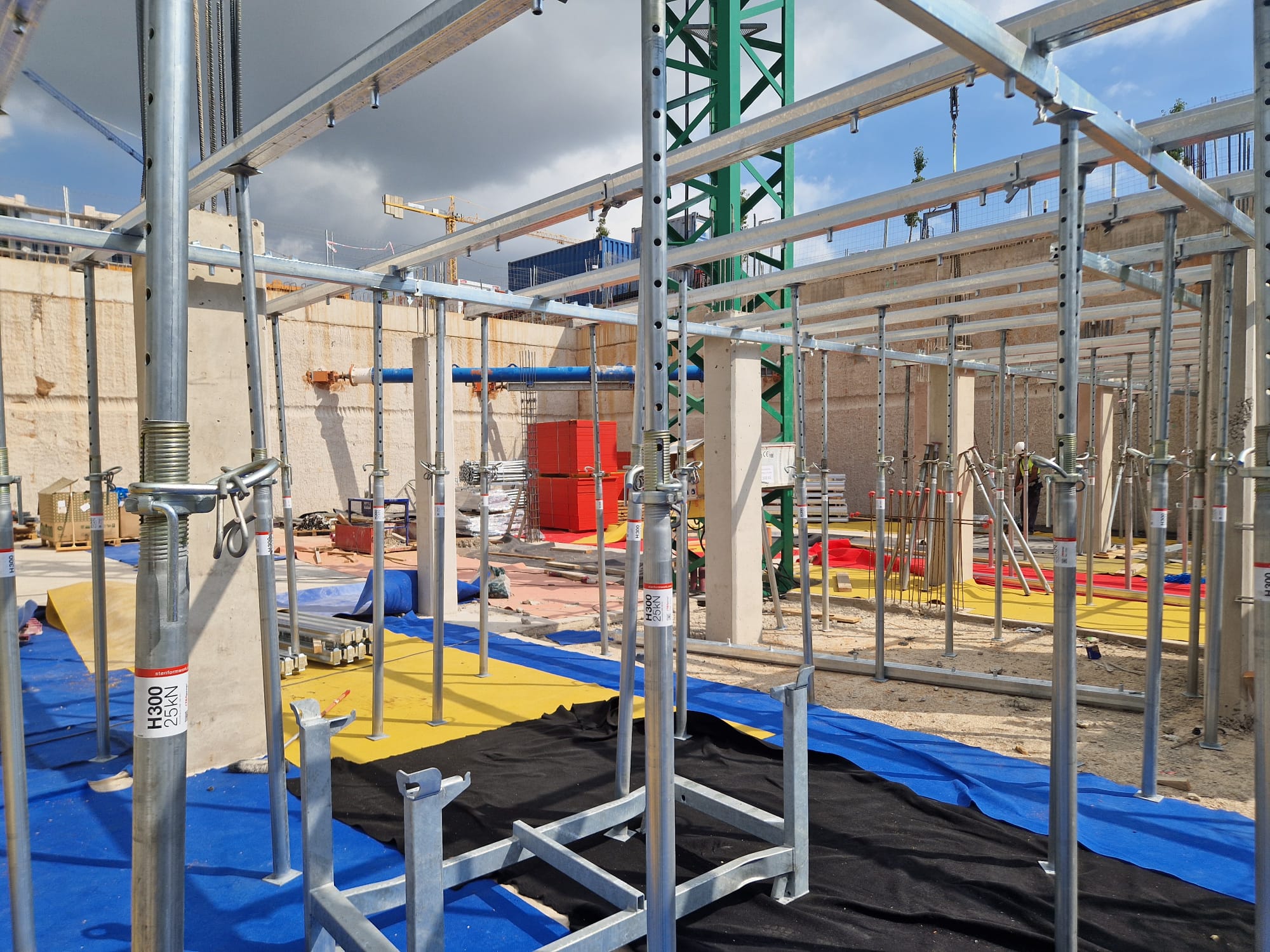

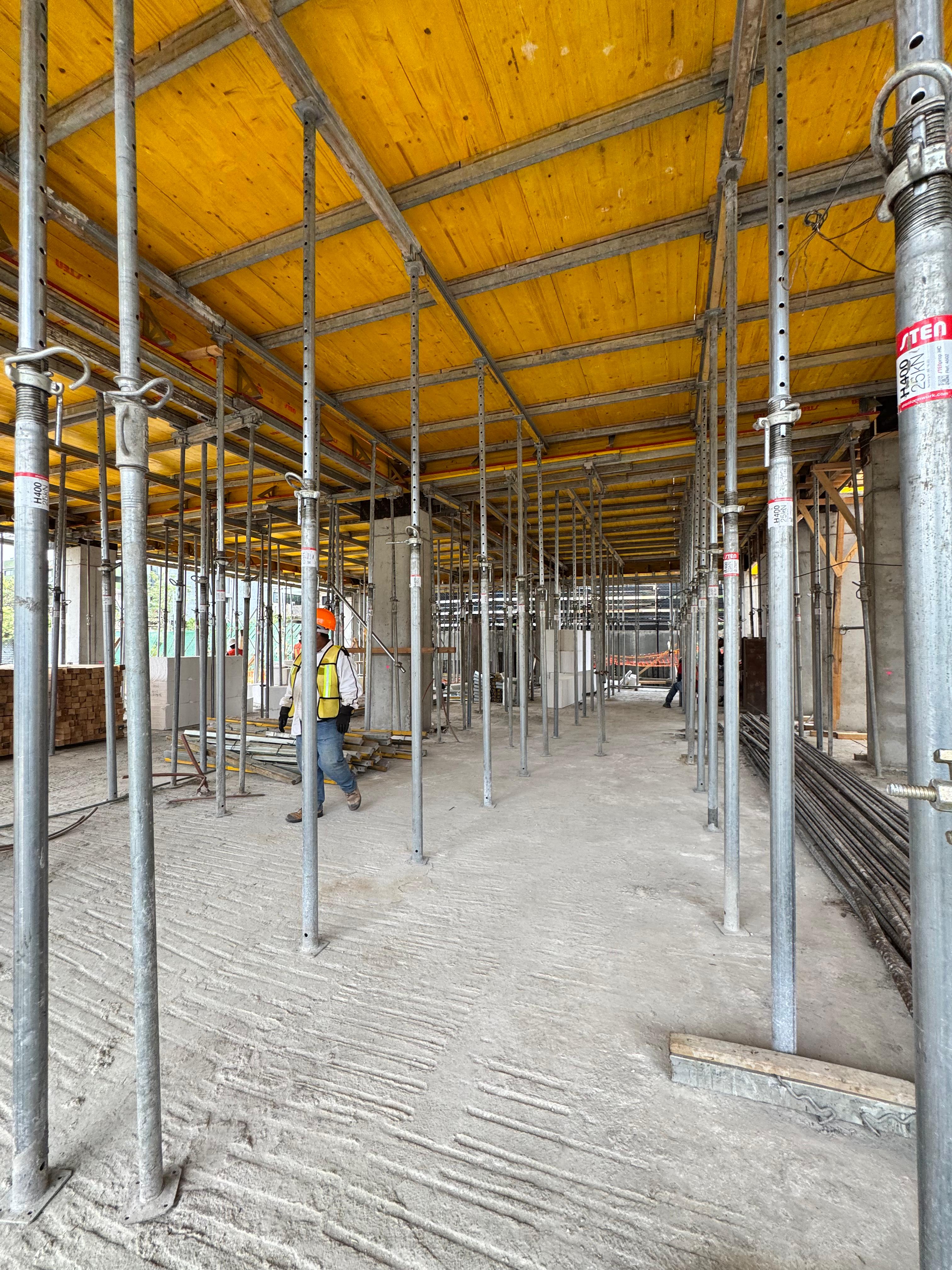

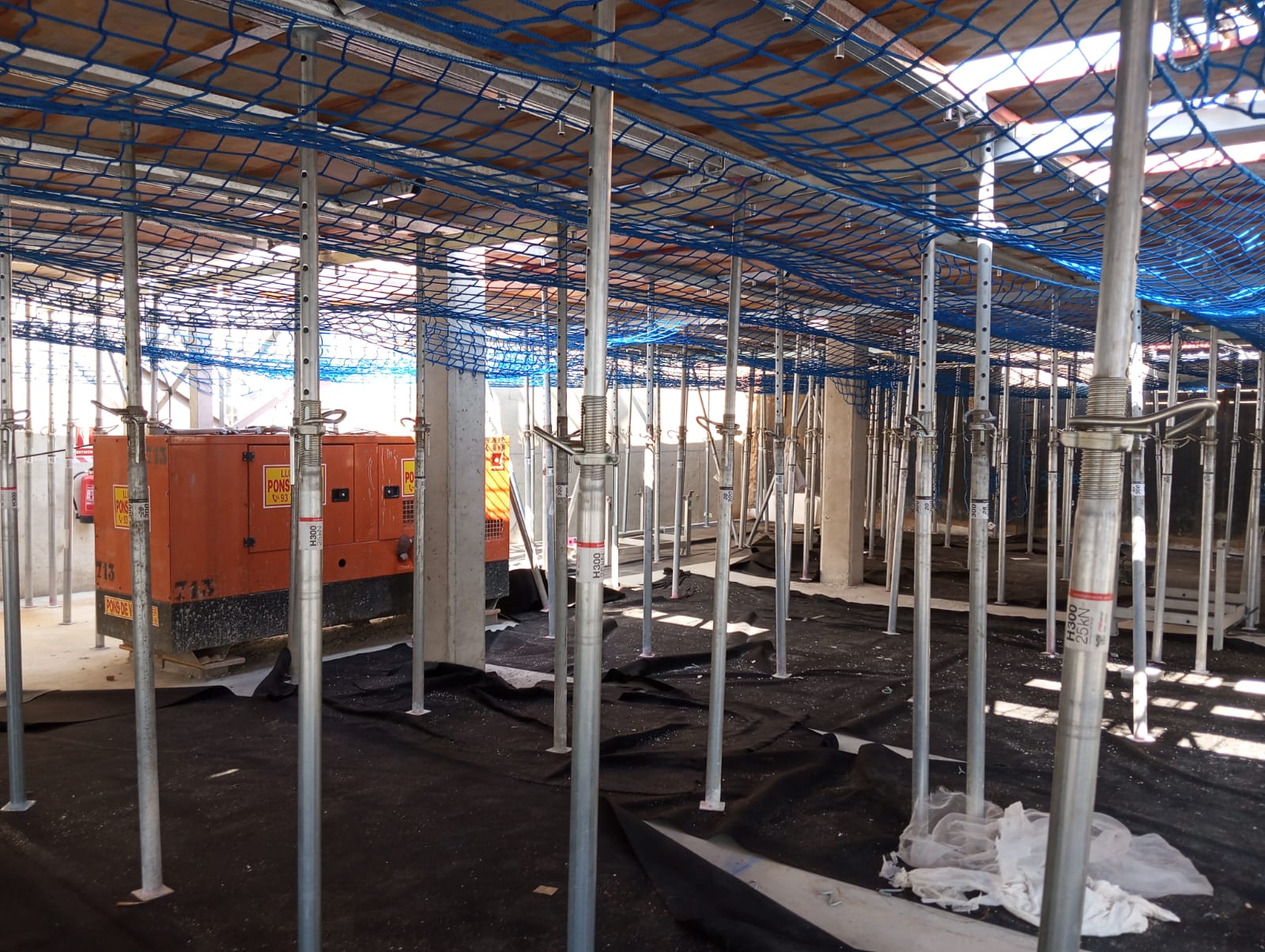

STENprop HC props have been designed to provide a better solution and efficiency on-site, thanks to their lightweight design, great durability, and high load capacity.

Download STENprop® HC catalog.
Icon Download
Complies with
UNE-180201:2022 ANSI/SSFI SH300
(Normative Spanish)


(Norm USA)


Length of prop
From
1,70
m

To
3,50
m
(Props available in standard sizes of 3.00m and 3.50m)

Allowable load
25
kN
(According to standards UNE-180201:2022 ANSI/SSFI SH300)


Weight
10,5
kg
(Prop 3.00m)

13,1
kg
(Prop 3.50m)

Thickness of tube
2,25
mm


Diameter of tube
Exterior‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ Interior
58,8‎ -‎ 46,8
mm
(Prop 3.00m)

63,0‎ -‎ 51,0
mm
(Prop 3.50m)

Material
Galvanized steel
Finish
Galvanized

Main advantages

High capacity

Resistant props
designed to support
heavy loads
at any
extension length.

Quick

Lightweight prop
with an easily
adjustable thread
that allows for fast
work and minimizes effort.

Durable

They maintain

their lifespan

for years due to

high-quality production

and a galvanized finish.

Safe

Safe conditions
thanks to the prevention
of entrapments
and the anti-disassembly
lock to avoid accidents.

High capacity

Resistant props
designed to support
heavy loads
at any
extension length.

Quick

Lightweight prop
with an easily
adjustable thread
that allows for fast
work and minimizes effort.

Durable

They maintain

their lifespan

for years due to

high-quality production

and a galvanized finish.

Safe

Safe conditions
thanks to the prevention
of entrapments
and the anti-disassembly
lock to avoid accidents.

Download our catalog.

Discover all the details, advantages, and accessories of the STENprop 20® system

Download our catalog.<div></div>
